Stainless Steel Explosion-Proof Single Seat Electric Intelligent Proportional Flow Control Valve

جزئیات محصول

محل منبع: چین

نام تجاری: JGPV

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش: 1 مجموعه

جزئیات بسته بندی: بسته بندی ایمنی جعبه تخته سه لا

زمان تحویل: 14 روز

شرایط پرداخت: L/C، T/T، وسترن یونیون

قابلیت ارائه: 500 مجموعه در هر ماه

بهترین قیمت رو بدست بیار

جزئیات محصول

توضیحات محصول

برجسته کردن:
                                                                                                                                                                                                                                                                                                                                                                                                                Stainless Steel Electric Control Valve,Explosion-Proof Intelligent Control Valve,Single Seat Proportional Flow Control Valve, Explosion-Proof Intelligent Control Valve, Single Seat Proportional Flow Control Valve


کاربرد::	عمومی	گواهی::	ISO9001 ، ISO14001
نوع متوسط::	آب ، بخار و روغن و غیره	اتصال::	رشته / فلنج / جوش داده شده
استاندارد یا غیر استاندارد::	استاندارد	راه جریان::	دو طرفه
فعال سازی::	دستی ، برقی ، پنوماتیک ، اتوماتیک	عملکرد آب بندی::	آب بندی
دمای کاری::	دمای طبیعی و دمای بالا	برنامه فشار::	فشار عادی
ضمانت کیفیت::	18 ماه

کاربرد::	عمومی
گواهی::	ISO9001 ، ISO14001
نوع متوسط::	آب ، بخار و روغن و غیره
اتصال::	رشته / فلنج / جوش داده شده
استاندارد یا غیر استاندارد::	استاندارد
راه جریان::	دو طرفه
فعال سازی::	دستی ، برقی ، پنوماتیک ، اتوماتیک
عملکرد آب بندی::	آب بندی
دمای کاری::	دمای طبیعی و دمای بالا
برنامه فشار::	فشار عادی
ضمانت کیفیت::	18 ماه

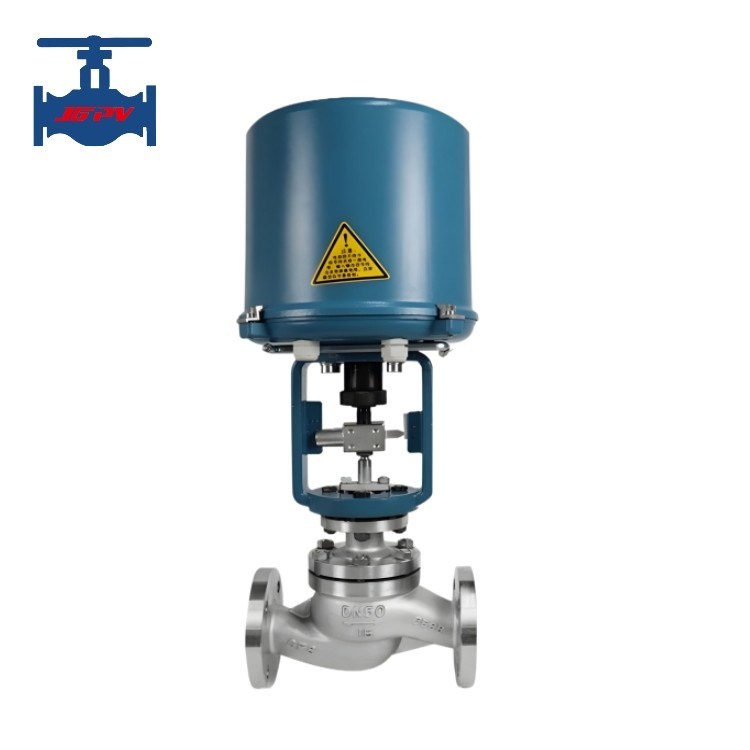

Stainless Steel Explosion-Proof Single Seat Electric Intelligent Proportional Flow Control Valve

Electric Control Valve - Stainless Steel Intelligent Steam Temperature Proportional Flow Cast Steel Single Seat Explosion-Proof Control Valve

Electric control valve, stainless steel intelligent steam temperature proportional flow cast steel single seat explosion-proof control valve

Product Introduction

The ZDLM electronic electric sleeve regulating valve is composed of a straight stroke fully electronic electric actuator and a straight through low flow resistance balanced sleeve valve. It has a compact structure, light weight, sensitive action, S-shaped fluid channel, small pressure drop loss, large valve capacity, precise flow characteristics, and can directly receive control signals from regulating instruments (4-20mA DC, 0-10mA DC or 1-5V DC) and single-phase power supply to control operation, achieving automatic regulation and control of process pipeline fluid media. It is widely used for precise control of process parameters such as pressure, flow rate, temperature, liquid level, etc. of gas, liquid, steam and other media to maintain them at given values. It is a new generation of universal regulating valve products that comply with IEC standards.

Technical Specifications

Parameter	Specifications
Nominal Diameter DN (mm)	20, 25, 32, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300
Rated Flow Coefficient Kv	Straight line: 1.8-1760; Equal percentage: 1.6-1600
Rated Travel L (mm)	10, 16, 25, 40, 60, 100
Nominal Pressure PN (MPa)	1.6, 4.0, 6.4
Inherent Flow Characteristic	Straight line, equal percentage
Inherent Tunable Ratio R	50:1
Permit Leakage Rate	Single-seat: Hard seal: Grade IV, soft seal: Grade VI Sleeve: Hard seal: Grade II, soft seal: Grade VI
Operating Temperature (°C)	-20-200, -40-250, -40-450, -60-450
Signal Range (mA.DC)	0-10, 4-20
Power Supply Voltage	220V, 50Hz
Mode of Action	In case of malfunction: fully closed, fully open, self-locking position

Product Features

ZDLM electronic electric sleeve regulating valve is the execution unit of the instrument in the automation control system. It is powered by AC220V power supply voltage and receives current or voltage signals (4-20mA, 0-10mA or 1-5VDC) from DCS, PLC system or regulating instruments, operators, etc. to control the operation.
ZDLM electronic electric sleeve regulating valve can be divided according to its operating mode: Positive effect (Electric closed normally open type) and Reaction (Electric open normally closed type).
The ZDLM electronic electric sleeve regulating valve is a straight through sleeve cast spherical valve with a balanced valve core, which has low unbalanced force and stable operation. It is suitable for working environments with large pressure difference and slightly large leakage before and after the valve.
The straight through low flow resistance sleeve valve adopts a pressure balance cage valve core structure. The valve core is cylindrical, and a certain characteristic window hole is precisely machined. It is guided by the inner circle and top of the sleeve, so the unbalanced force on the valve stem is very small, the operation is stable, and the performance is good.
By changing the design of the valve core shape, different valve core window shapes will result in different flow characteristic values: equi percentage (logarithmic), linear.
This series of products is widely used in the automation and remote control of industrial production processes such as chemical, petroleum, metallurgy, power plants, textiles, papermaking, and pharmaceuticals.

Product Images
