Oxygen Globe Valve

جزئیات محصول

Place of Origin: China

شرایط پرداخت و حمل و نقل

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 100pcs per month

بهترین قیمت رو بدست بیار

جزئیات محصول

توضیحات محصول

برجسته کردن:

Application::	General	Medium Type::	Water, steam and oil etc.
Mounting Type::	Direct Mount	Standard Or Non-Standard::	Standard
Flow way::	Two way	Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing	Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure	Quality Warranty::	18 Months

Application::	General
Medium Type::	Water, steam and oil etc.
Mounting Type::	Direct Mount
Standard Or Non-Standard::	Standard
Flow way::	Two way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

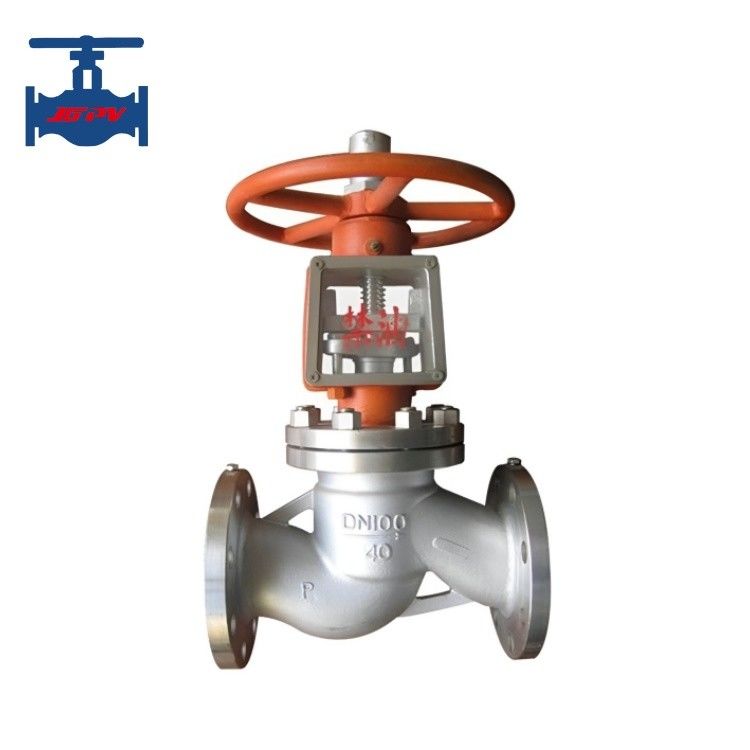

Oxygen Globe Valve

Highlight: Oxygen Globe Valve

Product introduction:

The stainless-steel oxygen globe valve is precision-cast from high-grade silicon brass or stainless steel, offering exceptional mechanical strength, wear resistance, and operational safety. Specifically designed for oxygen pipelines, its explosion-proof and flame-retardant properties effectively eliminate potential hazards, ensuring reliable performance in critical oxygen systems.

Product technical parameters:

Nominal Pressure PN(MPa)		1.0 - 4.0
Nominal Diameter DN(mm)		15～600
Test pressure (MPa)	Strength (water)	1.5 times of pressure nominal
	Sealing (water)	1.1 times of pressure nominal
	Sealing (Air)	0.6 times of pressure nominal
	Sealing for bellows (water)	1.5 times of pressure nominal
Raw material		WCB, CF8, CF8M
Medium suitable:		Water, steam, oil mediums
Working temperature		-196℃～600℃
Connection type		Flange
Operational method		Hand-wheel, bevel gear, pneumatic and electric actuators

Product features:

Simple structure, convenient for manufacturing and maintenance.
Short working stroke and quick opening/closing time.
Good sealing performance, minimal friction between sealing surfaces, and long service life.
The valve is equipped with an electrostatic grounding device to prevent sparks caused by static electricity.
All components undergo strict degreasing treatment.
